Healthier Water, Happier Animals.

Foam Fractionators

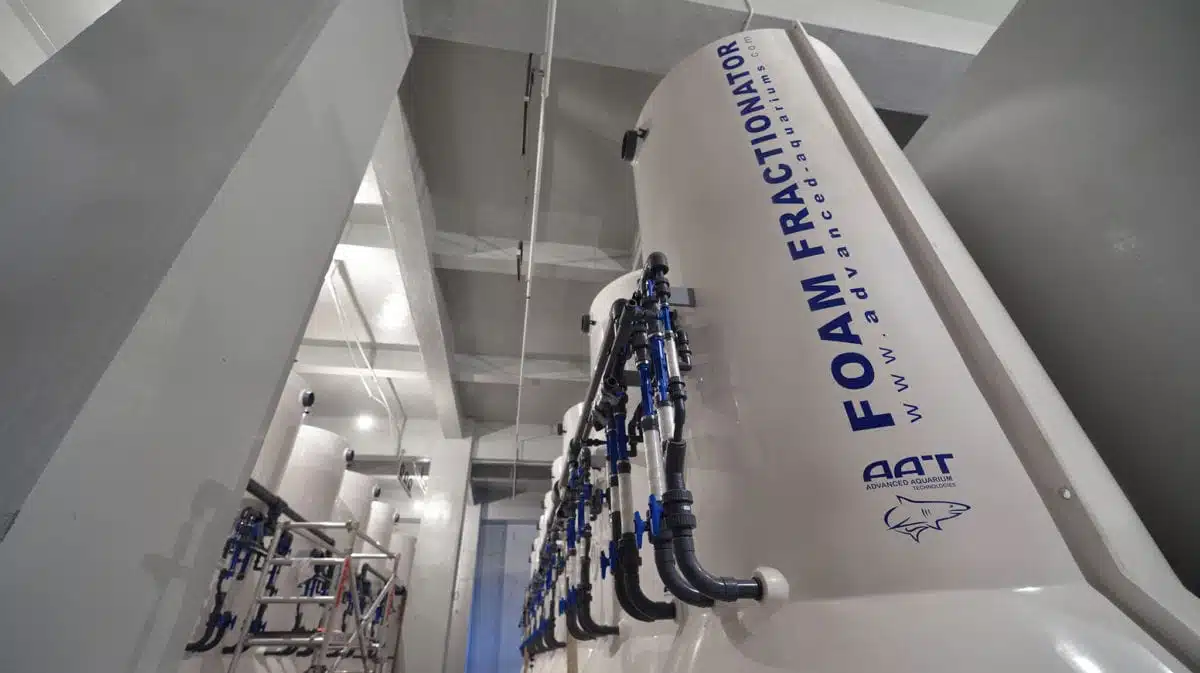

AAT Foam Fractionators use billions of harmless bubbles to remove microscopic organic compounds, protein particles, amino acids, bacteria and other waterborne detritus from salt-water. It’s just one of the ways that AAT helps keeps aquatic creatures healthy and happy.

Questions? Ask us.

Powered by simplicity

Inside AAT Foam Fractionators, a continuous stream of bubbles – uniform in size and density – circulate predictably and rise slowly against the current. With a 2-minute dwell time, these bubbles have plenty of time to attract all manner of debris and contaminants and convey them to the surface where they are removed.

Why Clients Prefer AAT Foam Fractionators

Versatile – 7 sizes available

  • From 5 to 226 cubic meters per hour (180 to 7,988 cubic feet per hour).
  • Body diameters from 300 to 2,000 mm (11.8” to 78.7”).
  • Option for 100% air or air/ozone mixture.

Easy to clean and maintain

  • Larger systems are primarily self-cleaning with an optional automated wash-down system and components.
  • The rotating spray wash-down mechanism is the only moving part inside an AAT fractionator.

Resilient and durable

  • Made with strong, durable, premium-grade vinyl ester resin – resistant to chemical and ozone attack.
  • Quality fittings and valves.
  • Free from corrosion-vulnerable metals inside the chamber.

Order individually or in batches

  • Can be shipped anywhere in the world for on-site installation in batches
  • Individual units can be supplied to replace or upgrade existing existing filtration solutions

Highly effective purification

  • Unique chamber-shape, valve-designs and component-positioning.
  • Tapered base reduces water exit velocity and allows fine bubbles to break.
  • Venturi manifolds incorporates tunable Mazzei injectors. Internal baffle plate for uniform fluid flow.

At-a-glance inspection

  • Acrylic viewing enables easy inspection of the venturi nozzles and the torrent of bubbles inside.
  • Clear PVC dome and cone makes control and diagnostic analysis easy.
  • Clear tubes enables visual inspection of mixing.

How are foam fractionators installed?

Watch the video, and see for yourself.

Visit our Youtube channel

Technical Specifications

Model Contact Area Flow Rates (m3/hr) Unit Dim A (mm) Unit Dim B (mm) Shipping Weight (kg) Operational Weight (kg)
FF300 0.07 5.1 300 1472 22 108
FF400 0.13 9.0 400 1511 30 207
FF600 0.28 20.4 600 2878 98 956
FF1000 0.79 56.5 1000 3804 245 2954
FF1150 1.04 74.8 1150 4033 292 4583
FF1500 1.77 127.2 1500 5140 576 10959
FF2000 3.14 226.2 2000 5140 983 16690
Model Contact Area Flow Rates (ft3/hr) Unit Dim A (Inch) Unit Dim B (Inch) Shipping Weight (Lbs) Operational Weight (Lbs)
FF300 0.76 179.7 11.8 58.0 48.5 237
FF400 1.35 319.5 15.7 59.5 66.14 456
FF600 3.04 718.9 23.6 113.3 216 2106
FF1000 8.45 1997 39.4 149.8 540 6512
FF1150 11.18 2641 45.3 158.8 644 10102
FF1500 19.02 4493.2 59.1 202.4 1270 24160
FF2000 33.82 7987.9 78.7 202.4 2167 36795
1 2 Ff1
1 2 Ff2
